FENCE LODGE
- Proven technology is used for production as in the production of tiles
- Faithful imitation of a stone building
- High variability
- Versatile use (creation of columns, flower pots...)
- The parts can be rotated vertically or horizontally
- Possibility to combine with the Stone Lodge
 |
Assembly instructions | |
Technical information |
WALL
For the construction of the wall, 18 optically different blocks in three sizes are used (short 15.5 x 10.8 cm, medium-sized 23.5 x 10.8 cm and long 39 x 10.8 cm). We recommend a maximum wall height of 80 cm.

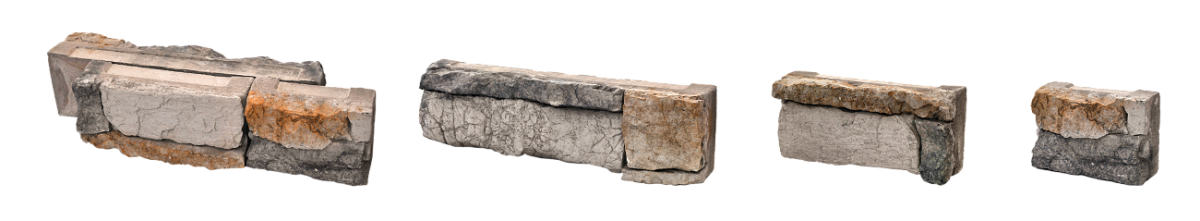

The pictures show: Combined wall blocks: short, medium-sized, long and individual wall pieces: short, medium-sized, long
PILLAR
For the construction of a column with the dimensions 32 x 32 cm, 8 visually different full blocks with a size of 24 x 10.8 cm are required
and 2 optically different pillar blocks with cut-out used for connection to the wall. We recommend a maximum column height of
180 cm.
The figures show: connected column blocks whole - connected column blocks with cutout and whole - separated column block whole and separated column block with cutout

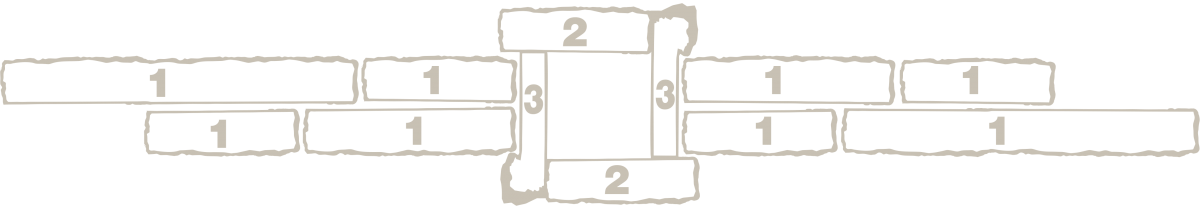

View of the composition of the fence system from above:
No. 1 denotes the connection of the wall blocks in three lengths
No. 2 indicates the full column blocks
No. 3 denotes the column blocks with a cutout
For the construction of the wall, 18 optically different blocks in three sizes are used (short 15.5 x 10.8 cm, medium-sized 23.5 x 10.8 cm and long 39 x 10.8 cm). We recommend a maximum wall height of 80 cm.
The pictures show: Combined wall blocks: short, medium-sized, long and individual wall pieces: short, medium-sized, long
PILLAR
For the construction of a column with the dimensions 32 x 32 cm, 8 visually different full blocks with a size of 24 x 10.8 cm are required
and 2 optically different pillar blocks with cut-out used for connection to the wall. We recommend a maximum column height of
180 cm.
The figures show: connected column blocks whole - connected column blocks with cutout and whole - separated column block whole and separated column block with cutout
View of the composition of the fence system from above:
No. 1 denotes the connection of the wall blocks in three lengths
No. 2 indicates the full column blocks
No. 3 denotes the column blocks with a cutout
| PILLAR CAP LODGE Size: 42 length x 42 width x 7 cm thickness Weight 1 piece: 22 kg. Laterally processed relief on 4 sides. |
WALL CAP LODGE Size: 49.5 length x 23 width x 7 cm thickness Weight 1 piece: 14 kg. Has a laterally worked relief on two opposite sides. |
 |
 |
